Specification
- Function
- Power
- Width
- 6 HP
- In rack
- 1
- Built
- 2023
- Revision
- B
- Status
- Built
Power · 6 HP
Power Supply
Powering the rack by converting a 9V to 36V input into +12V, -12V and +5V.

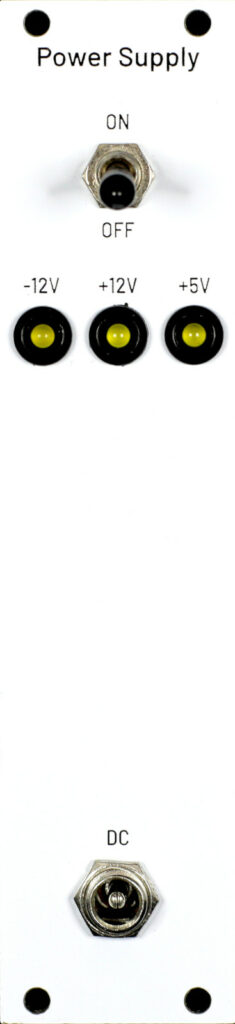

My power supply is based on the Erica Synths mki x es.EDU Power Supply. I created a 6 HP rack mount clone so I could bring the power switch and status LEDs forward to the front of the rack. Why hide the blinkenlights inside the case?

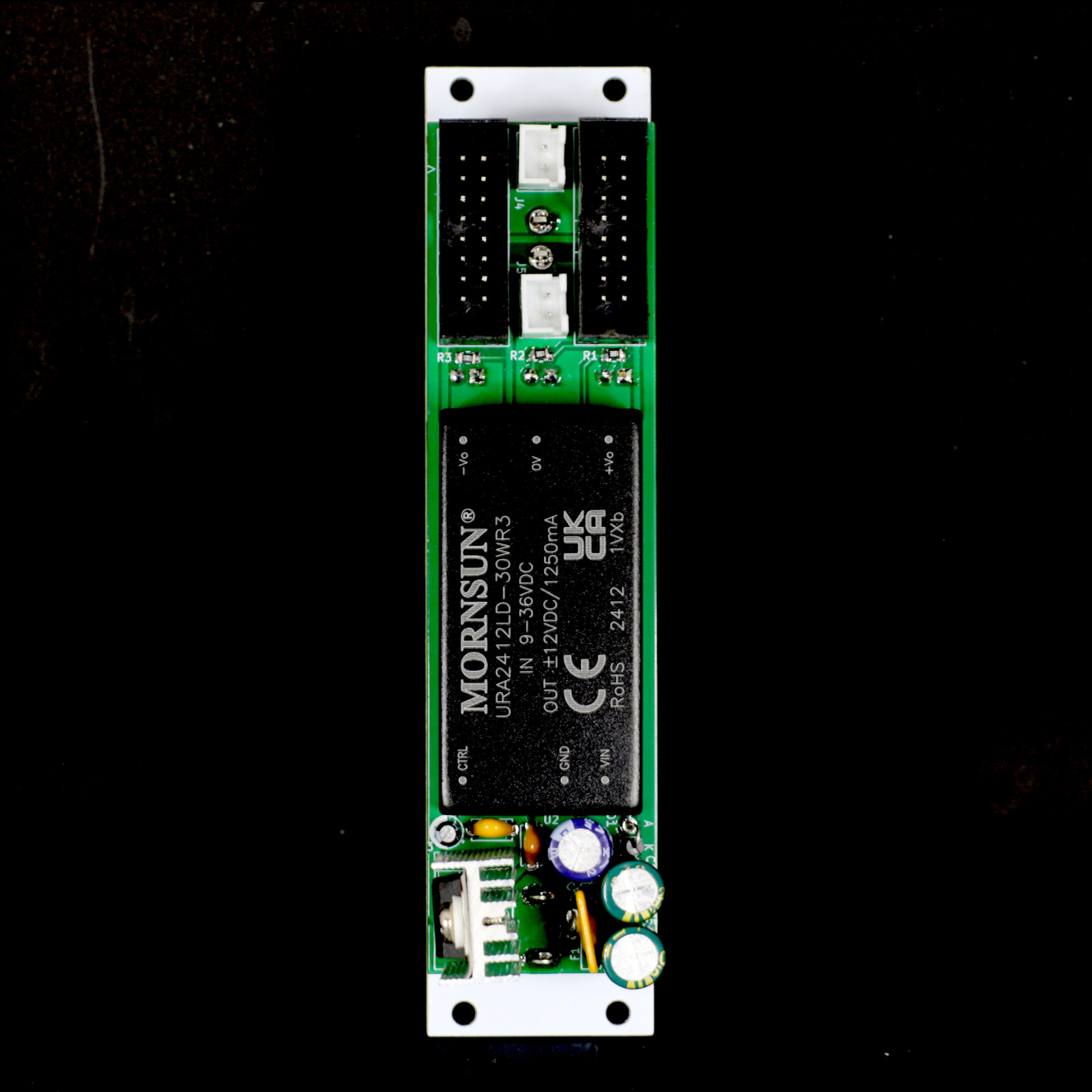

The design is centered around a 12 volt DC to DC converter which means that I don’t need to worry about messing around with line voltage inside my case. The converter I’m using is the MORNSUN URA2412LD-30WR3 which is rated for 1.25 amps on each rail.
PCB and build photographs
Revision log
A
2023-07
Initial build
B
2025-12
Second revision with internal JST connectors so that multiple power supplies can be chained together
