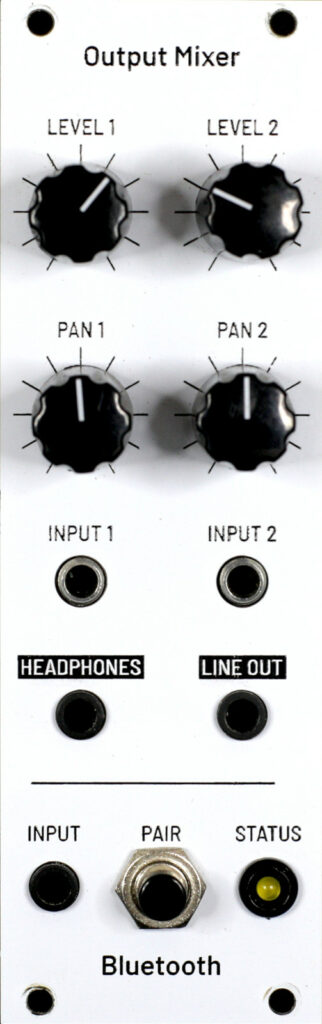

Output Mixer
Built
Mixer
Version 1.0
About
My output mixer design is based on the Erica Synths DIY EDU Output Mixer, designed by Maris Zeltins. The basic functionality is a two-channel panning mixer with line level and amplified headphone outputs, and I’ve expanded the original design by adding in a Bluetooth output module so I can use wireless headphones by playing my synthesizer.
Format
8HP
Width
Inputs & Outputs
| Name | Signal type | Notes | |
|---|---|---|---|
| In | INPUT 1 | Audio | Eurorack audio input |
| In | INPUT 2 | Audio | Eurorack audio input |
| Out | HEADPHONES | Audio | Output for headphones and small speakers |
| Out | LINE OUT | Audio | Output for line level devices |
| In | INPUT | Audio | Input for the Bluetooth module, normalled to Line Out |
Build files

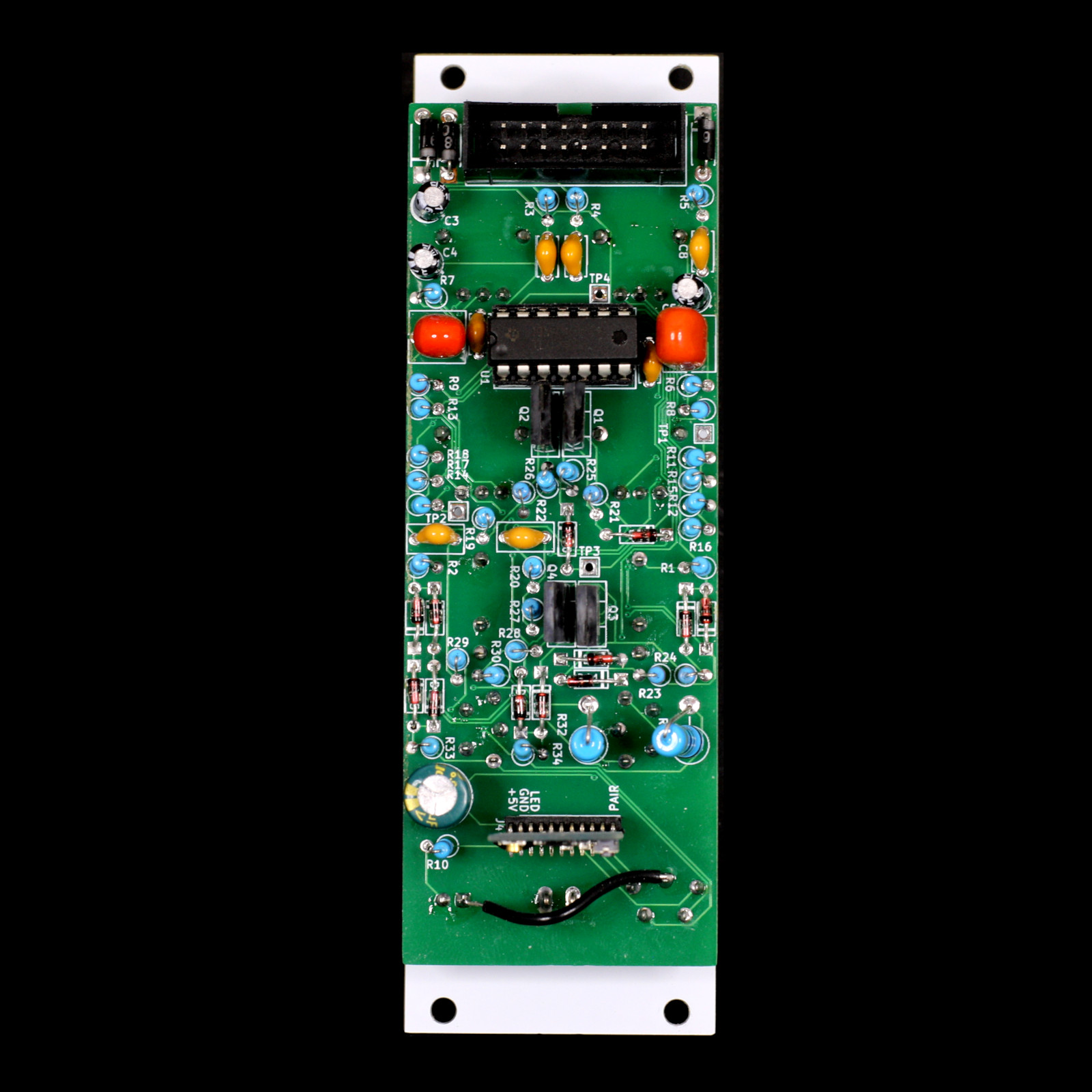

Build gallery
