Specification
- Function
- Utilities
- Width
- 6 HP
- In rack
- 4
- Built
- 2023
- Revision
- B
- Status
- Planned
Build files
- Mixer Rev B Schematic
Utilities · 6 HP

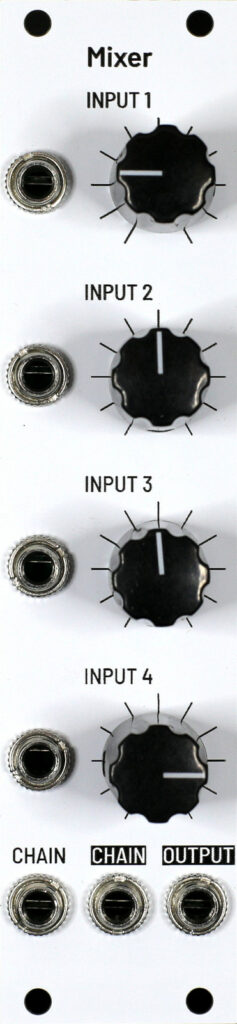

Mixer
A simple four channel mixer which can be chained to expand to 8 or 12 channels.

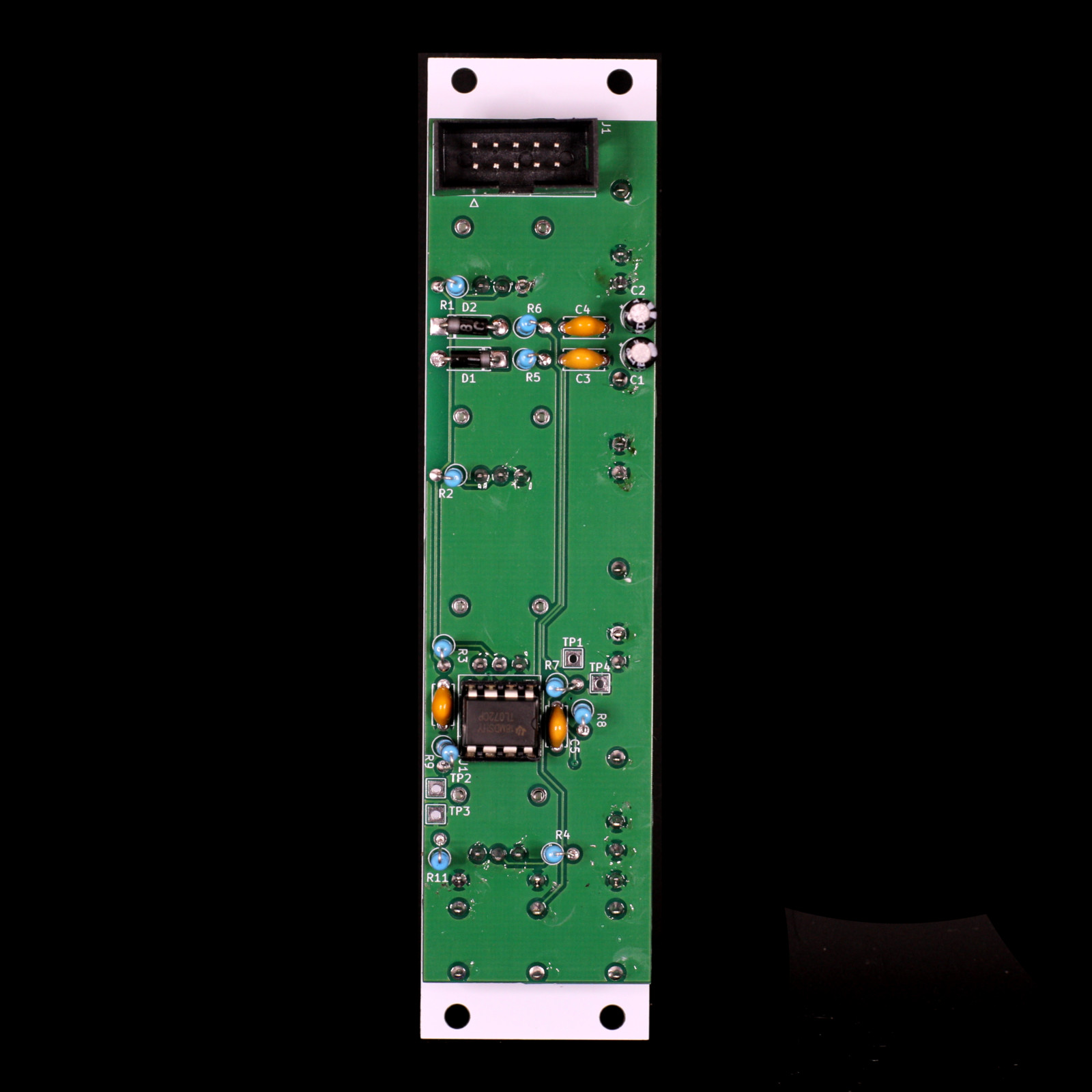

PCB and build photographs
Revision log
A
2023-10
4 channel summing mixer with inverted and non-inverted output
B
2026-02
Removed the inverted output and added chain in and chain out for expansion
