Envelope Generator and Voltage Controlled Amplifier
Built
Envelope Generator
VCA
Version 1.0
About

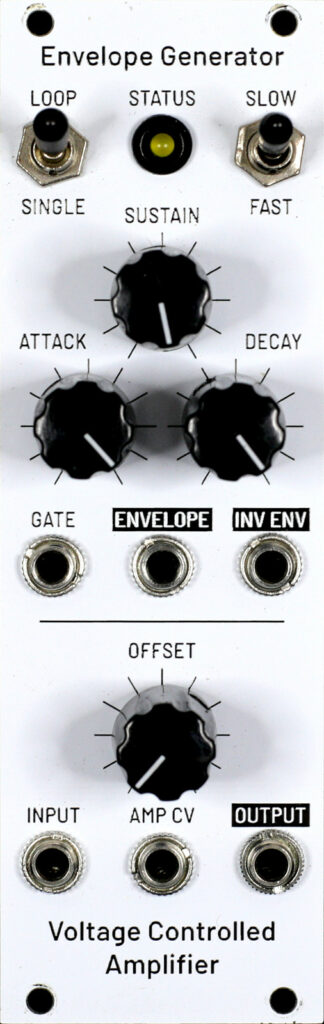

This dual-purpose module combines Moritz Klein’s designs for an envelope generator and a voltage controlled amplifier into a single module.
Format
8HP
Width
Inputs & Outputs
| Name | Signal type | Notes | |
|---|---|---|---|
| In | GATE | Gate | Gate Input for the Envelope Generator |
| Out | ENVELOPE | Control Voltage | Envelope output |
| Out | INV ENV | Control Voltage | Inverted Envelope output |
| In | INPUT | Any | Input for the Voltage Controlled Amplifier |
| In | AMP CV | Control Voltage | Amplitude CV for the Voltage Controlled Amplifier, normalled to the Envelope output |
| Out | OUTPUT | Any | Output of the Voltage Controlled Amplifier |
